Handheld Advanced Systems 900mhz

The Short Range Wireless Switch System Handheld (SRWSSHH) is designed for short range (up to 350 yards*) and simple wireless switching. The SRWSSHH the simple solution where faulty wire replacement is required, new installation is not possible or practical, or many different pieces of equipment need to be controlled.

The SRWSSHH consists of one, two, four, or eight-key handheld transmitters and a one, two, four, or eight-output (SPDT Class C relay) 902-928MHz frequency hopping receiver. Simply connect the devices you want to control to the SRWSSHH, and the SRWSSHH is ready for use and guaranteed to perform.

The Short Range Wireless Switch System (SRWSSHH) 902-928 MHz System uses a 1, 2, 4 or 8 button handheld transmitter and a 1, 2, 4 or 8 output receiver to provide wireless control of multiple devices. The transmitter is used to send a coded set of instructions to the receiver activating corresponding relay outputs. The encrypted coding is a random generated code, which is programmed wirelessly to the transmitter and receiver. Multiple transmitters can be programmed to one receiver and a single transmitter can operate multiple receivers. The receiver output relay has two modes that control how the relays function. The relays are SPDT Class C rated for 5 amps @ 250VAC (or 5A @ 30VDC) with Normally Open (NO), Normally Closed (NC), and a Common (C) contacts. The receivers and transmitters use fast frequency hopping (FFH) to allow up to eight receivers to be used in the same area. No interference or jamming will occur.

Short Range Handheld Light Duty Cut Sheet

Short Range Handheld Heavy Duty Cut Sheet

Short Range Handlead Light Duty Installation Guide

Short Range Handheld Heavy Duty Installation Guide

Possible applications include:

• Pump Control
• Valve Actuation
• Conveyor Control
• Grain Augers
• Light Control
• Stackers
• PLC Activation
• Engine Control
• Wireless Automation

Transmitter PART #90100HH

• Potential Range = 1/2 Mile non-LOS
• Single Button Operation
• Visual Feedback via LED
• Belt Clip

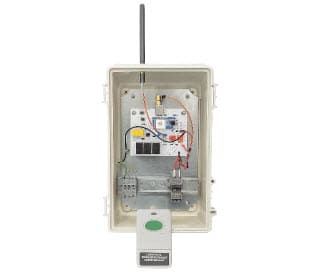

Receiver PART #90100HHR

• (1) SPDT Class C Relay Output
• Rated 15A @ 120VAC
• 10A @ 240VAC
• NEMA 4X Enclosure
• 2.1dBi Antenna Gain

This product allows for wirelessly triggering a relay through a battery powered handheld transmitter. The handheld transmitter is a send/receive unit that sends a signal when the button is pressed, indicated by a red LED light. It also receives a signal back from the receiver, indicated by a green LED light. This allows users to know the signal was sent and received by the corresponding receiver unit.

Possible applications include:

• Pump Control
• Valve Activation
• Pivot Control
• Grain Augers
• Light Control
• Stackers
• PLC Activation
• Engine Control
• Wireless Automation

• The 902-928 MHz model requires line-of-sight but is more resistant to electrical noise
• Handheld transmitters are available in 8, 4, 2, and 1 buttons in a heavy-duty aluminum enclosure
• Receivers are available with 8, 4, 2, and 1 relay outputs (5A at 250V contact rating) in a plastic NEMA 4x enclosure
• Includes antenna, mount, and coaxial cable
• Replaces wire or conduit when repair or new installation is not possible or practical
• Performance Guaranteed

RCT Wireless Nodes use the reliable, field-proven, wireless architecture. Containing a radio, internal battery supply, and optional 10 to 30 VDC power terminals, this product line is truly plug and play. The RCT Wireless Node has six independently controlled push button inputs and six sets of LED indicator lights. The push buttons can be configured with DIP switches for either toggle or momentary operation; the red and green LED indicator light outputs can be configured for solid or flashing operation.

Powerful device to deliver factory automation and IIoT solutions for many applications including but not limited to:

• Call for parts, service, or pallet pickup
• Door/gate control
• AGV control
• Motor jog control
• Forklift door control
