Commander Systems - Remote Control Technology

Commander 32 Station System

Part#: 01025

The TRC Commander 32 Station System is the only wireless remote irrigation control system that is compatible with all major irrigation controllers. This system is completely portable, making it ideal for commercial irrigation applications.

The Commander Receiver can plug into any 24VAC Irrigation Controller that is outfitted with a Controller Connector (pigtail).

1 Year Warranty
Operates any 24VAC solenoid valve irrigation system
Proprietary PDTFM transmission
Self-resetting fuse in receiver
Auto-up and Auto-back
Master valve or pump disable
Rugged Construction
Simultaneous operation of up to 7 valves and a master Valve
Controls up to 199 receivers per group code from a single Commander FM transmitter

9999 “field programmable” private group codes
Adjustable time duration up to 2 hours per station
Touch-pad control with audible tactile response
Water-resistant
Audible low battery indicator
Random access station operation
20 minute default shut off
Transmitter is compatible with all permanent receiver cards

Nylon Carrying Case
FM Transmitter, operates at 27MHz
Universal 32 Station Receiver
32 Station Permanent Controller Connector (pigtail)
One magnetic mount antenna with coax cable
Two 8″ whip antenna
One 9V Alkaline Battery

For Technical Specifications Click Here

Operation & Instruction Manual

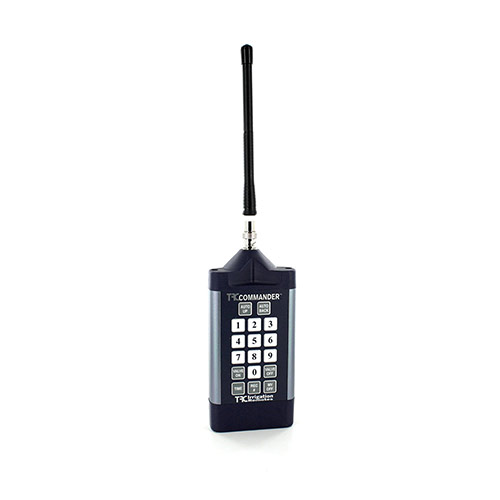

Commander Transmitter

Part #01035

Designed for commercial contractors, The TRC Commander Transmitter is a completely portable, professional grade wireless transmitter. It is the most popular transmitter in the irrigation industry. With a transmitting power of 2 Watts, and the capability of 2 miles range*, The Commander Transmitter is an invaluable tool. It is simple to operate and operates in a license-free band.

At the heart of the Commander System, one transmitter will operate a virtually unlimited number of receivers. It is the only transmitter designed to operate all TRC permanent receiver cards. Housed in a time-proven rugged aluminum enclosure, The TRC Commander transmitter is designed to provide the irrigation professional with years of service. TRC Irrigation Remotes backs that up with a one-year warranty.

Info Sheet
